折れ線グラフ

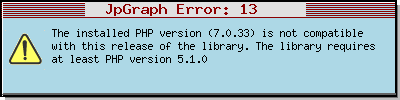

produced by JpGraph

ソースは次の通り。

<?php // content="text/plain; charset=utf-8"
require_once ('/virtual/hogehoge/expect_public_html/jpgraph/jpgraph.php');
require_once ('/virtual/hogehoge/expect_public_html/jpgraph/jpgraph_line.php');

$ydata = array(12,19,3,9,15,10);

// The code to setup a very basic graph
$graph = new Graph(200,150);
$graph->SetScale('intlin');
$graph->SetMargin(30,15,40,30);
$graph->SetMarginColor('white');
$graph->SetFrame(true,'blue',3);

$graph->title->Set('PM2.5');
// $graph->title->SetFont(FF_ARIAL,FS_BOLD,12);
$graph->title->SetFont(FF_FONT1,FS_BOLD,12);

// $graph->subtitle->SetFont(FF_ARIAL,FS_NORMAL,10);
$graph->subtitle->SetFont(FF_FONT1,FS_NORMAL,10);
$graph->subtitle->SetColor('darkred');
$graph->subtitle->Set('"LABELBKG_NONE"');

$graph->SetAxisLabelBackground(LABELBKG_NONE,'orange','red','lightblue','red');

// Use Ariel font
// $graph->xaxis->SetFont(FF_ARIAL,FS_NORMAL,9);
// $graph->yaxis->SetFont(FF_ARIAL,FS_NORMAL,9);
$graph->xaxis->SetFont(FF_FONT1,FS_NORMAL,9);
$graph->yaxis->SetFont(FF_FONT1,FS_NORMAL,9);
$graph->xgrid->Show();

// Create the plot line
$p1 = new LinePlot($ydata);
$graph->Add($p1);

// Output graph
$graph->Stroke();

?>

この例では、データを$ydate=array(....)の箇所でセットしています。
